Mud Agitator|Drilling Fluids Agitator

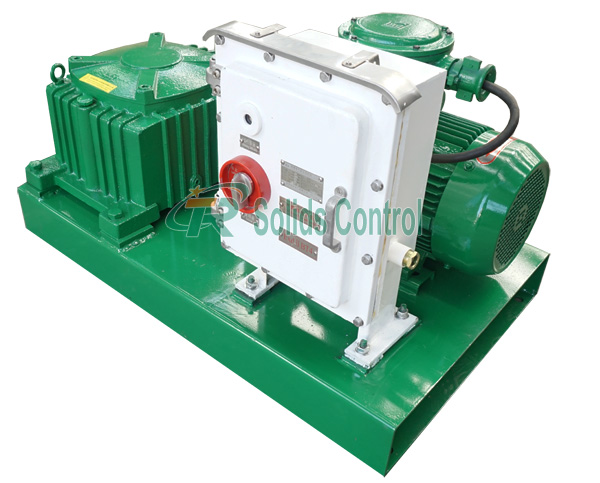

Drilling Mud agitator

Mud agitator is an important part of the drilling-fluid solids controling system. It can be installed on drilling fluid tank, with the impeller submerged into certain depth under fluid surface to stir the fluid directly. During this process, the drilling fluid can be mixed even, and the solid particles are eliminated. In this way, it can improve solid phase dispersion, and increase the viscosity and gel strength, thus to make drilling fluid keep accordant with the requirement, provide needful fluid for drilling process, and ensure the smooth going of drilling work.

TR solid control provide vertical and horizontal mud agitator. Horizontal agitator is divided into coupling type and direct type agitator. If you need a horizontal agitator, we recommend you use a direct type agitator. Agitator is an ideal device for stirring, mixing liquid and preventing the solid-phase precipitation in the mixture.

Advantages of Drilling Mud agitator

  •  The gearbox adopted worm and gear. Better scuffing more reliable.
  •  Motor and gear box will be connected by coupling or directly. Agitation speed is more stable.
  •  Good heat exchange performance faster cooling down.
  •  Lower decibels.
  •  Shaft and blades are customizable.
  •  Durable enough, easy to install, operate ,and maintain.
  •  Can be used under variety condition.

Drilling Fluid Agitator Technical Parameters

Model TRJBQ3 TRJBQ5.5 TRJBQ7.5 TRJBQ11 TRJBQ15 TRJBQ22
Motor 3kW(3.9hp) 5.5kW(7.2hp) 7.5kW(10hp) 11kW(15hp) 15kW(20hp) 22kW(28.6hp)
Impeller Speed 60/72rpm 60/72rpm 60/72rpm 60/72rpm 60/72rpm 60/72rpm
Single Impeller 600mm 850mm 950mm 1050mm 1100mm 1100mm
2 Layer Impeller N/A Higher:800mm
Lower:800mm
Higher:850mm
Lower:850mm
Higher:950mm
Lower:950mm
Higher:950mm
Lower:950mm
Ratio 25:1 25:1 25:1 25:1 25:1 25:1
Dimension 717×560×475 892×700×597 980×750×610 1128×840×655 1158×840×655 1270×1000×727
Weight 155kg 285kg 310kg 425kg 440kg 820kg
Shaft Length According to tank internal height
Frequency 380V/50HZ or 460V/60HZ or Customizable
Remark Shaft and impeller will be provided by TR, but not including in the weight & dimension.

Mud Agitator,Drilling Fluids Agitator,China mud agitator manufacturer    High Quality Slurry Agitator,Drilling Fluids mud agitator,Slurry Mixing Agitator

Mud agitator for drilling fluids solids control

Drilling Fluids Agitator in the mud system used to,mixing ratio and prevent to the mud tanked.TR solid control is an exporter of centrifugal pump . We are an exporter of drilling fluids mud agitator.Our factory approval the ISO9001,mud agitator have the API certification.TR solids control is the designed,selling,production,service and delivery of Chinese based manufacturer. We will provide the high quality mud agitator and best service.Your best drilling mud tank agitators start from TR solids control.
