Working Principle of TRZCQ Vacuum Degasser

Author:管理员    Date: 2020-12-04

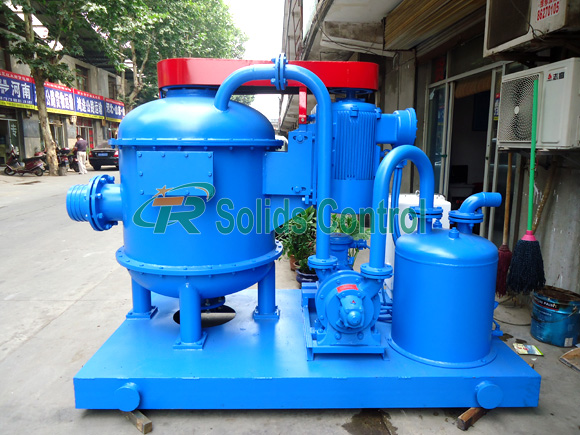

Vacuum degasser is a kind of drilling fluid degasser. It is a new type of special equipment used to process the invading drilling fluid. This kind of degasser plays an important role in restoring the specific gravity of mud and stabilizing mud performance. At the same time, it can be used as a high-power agitator, which is suitable for various mud circulation purification systems. This equipment is a negative pressure degasser with scientific and reasonable design structure. It can separate gas and liquid effectively, filter out impurities, and ensure that the exhaust pipe is always unblocked.

Drilling fluid vacuum degasser, oilfield vacuum degasser

Vacuum degasser is a kind of drilling fluid degasser.

Working Principle of Our TRZCQ Vacuum Degasser:

Our TRZCQ series vacuum degasser uses a vacuum pump to vacuate the main body of degasser and presses the mud into its main body by using atmospheric pressure. The air invaded mud passes through the impeller inside the degasser to rotate and swing to the periphery of the inner wall to burst the bubbles in the mud, thereby achieving the purpose of degassing. At present, the vacuum degasser produced by Derrick in the United States uses the umbrella and Venturi principle to remove the gas in the mud.

Large capacity vacuum degasser, API standard vacuum degasser

TR Solids Control is a professional manufacturer of vacuum degasser in China.

If you want to purchase Vacuum Degasser, you just need to be prepared to answer these following questions:

  1. What is the handling capacity?Such as 240 3/h, 270m 3/h, 300m 3/h, 360m 3/h.
  2. What is the diameter of the main body? 700mm,800mm,900mm,1000mm.
  3. What is the power of the Vacuum pump? Such as2 kw, 3 kw,4kw, 7.5kw.
  4. What is the power of the main motor? Such as 15kw,22kw, 30kw,
  5. What are the dimensions?
